How To: Install and configure Rotograph Evo Touch Screen Twain

Updated: 02/27/2018
Article #: 55

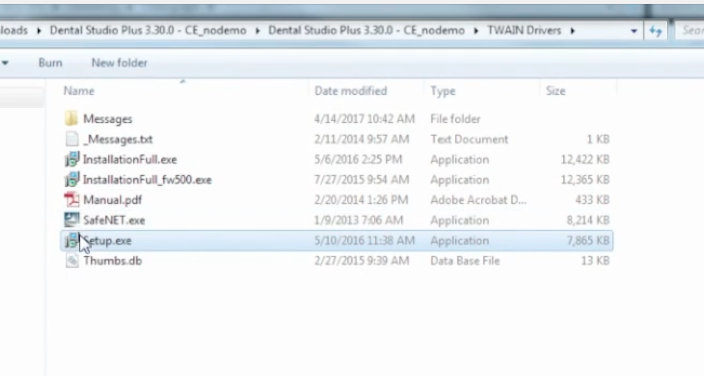

1. Run Twain Setup from Dental Studio Installer

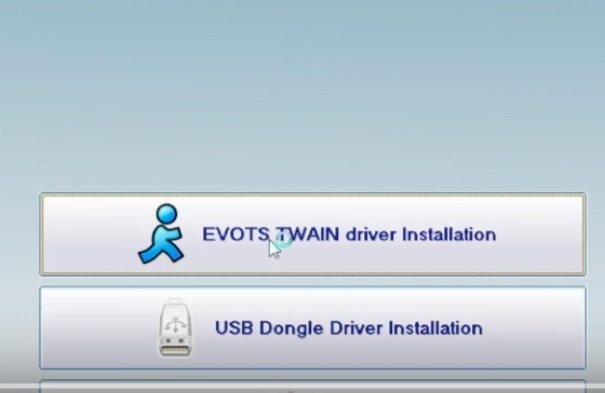

2. Install Evo Twain and USB dongle driver.

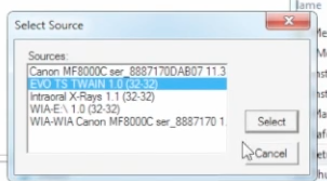

3.  Select the correct source, EVO TS,  for in the third party software twain source settings.





4. Run Twain module in third party software

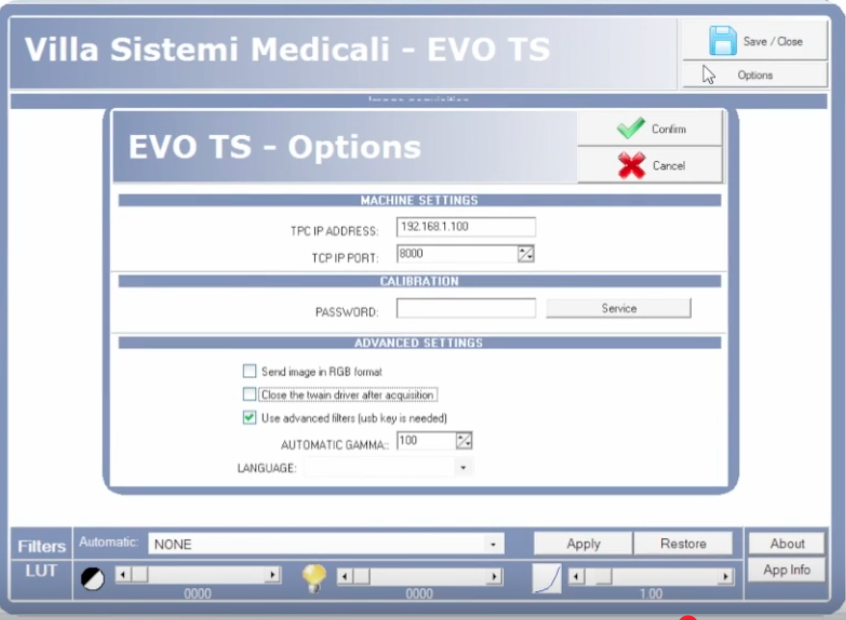

5. Click options in processing module before capture window appears. ( note: If green capture program appears over processing window just close capture program to view processing window )

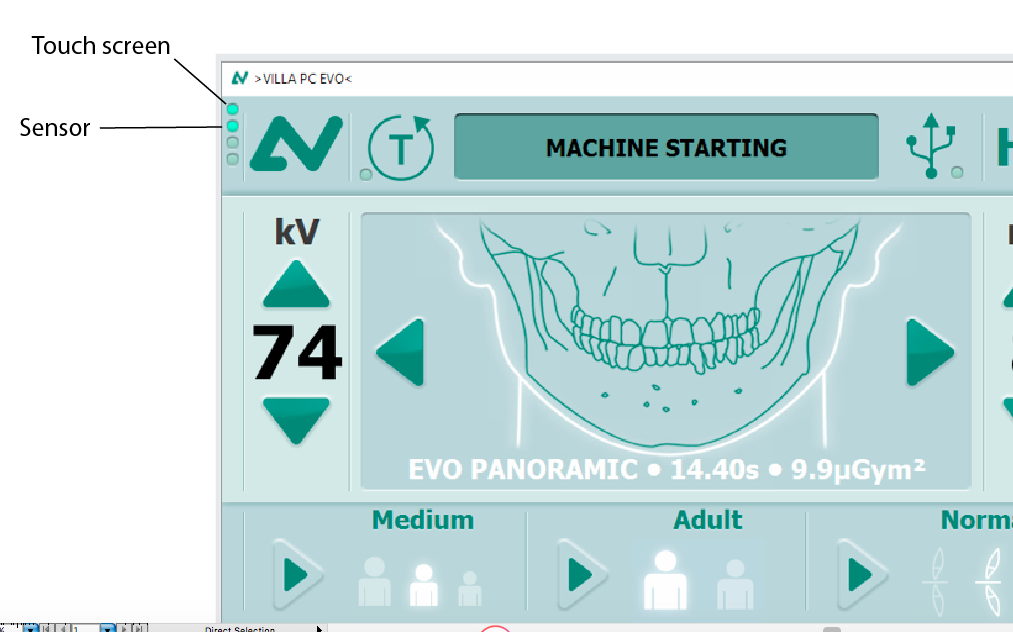

6. Change TPC IP address to 192.168.5.45 and click confirm. Close out of processing window and when you reopen capture program should synce. Check LED status.

















Quick Video guide:
