Rotograph Evo TS not communicating with capture program
Updated: 05/26/2017
Article #: 54
The Rotograph Evo Capture program led will indicate if the system is communicating with capture program.
If there is no communication you can ping the following IP's.
Touch Screen : 192.168.5.45
Sensor Range: 192.168.5. (99 -101)
If you are not able to ping make sure network card is set correctly.
Direct Connect Example:

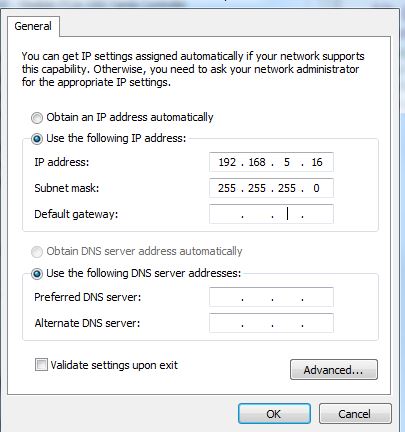

How to setup network card

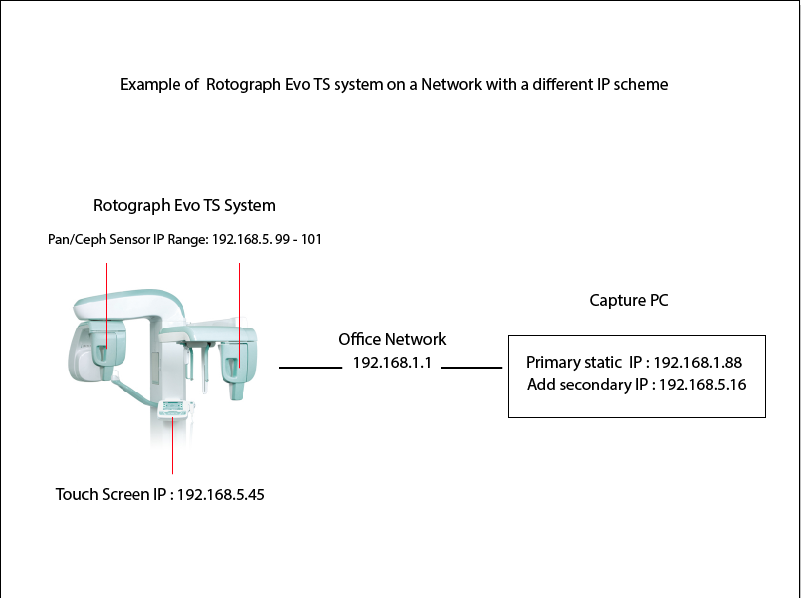

Example of Rotograph Evo TS connected to a network with a different IP scheme :

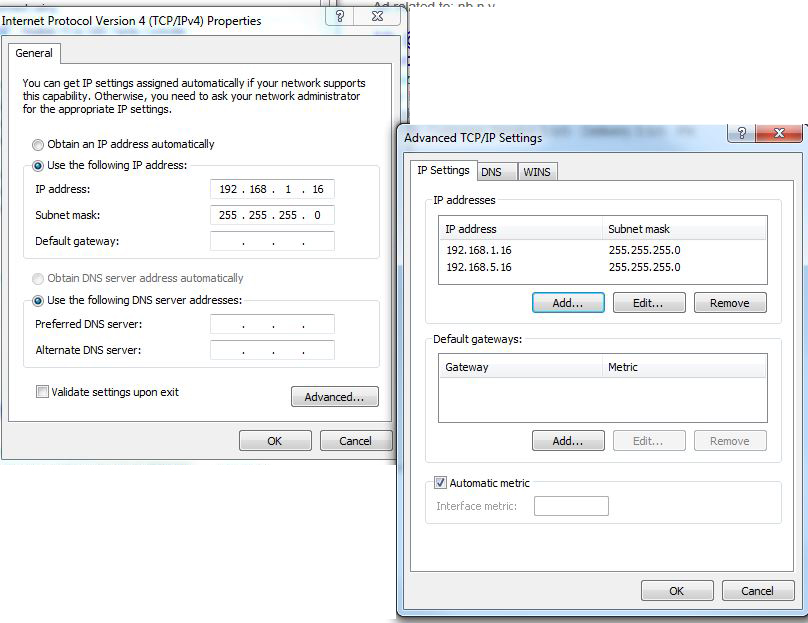

How to set up network card:
|
